Hypex Nilai500DIY Nilai® Amplifier module

Hypex
SKU:
H01U006432
Availability:
Sent within 4 days! Delivery times: US and UK 2-4, EU 2-6, worldwide 3-8 working days.
£364.01
(No reviews yet) Write a Review
Current Stock:

The price includes VAT within the EU!
Buying from outside the EU? Then get 10% discount on all Hypex products! Use the coupon HYPEX10OFF at checkout and if you have requested delivery outside the EU, you will receive a 10% discount on all Hypex products!
For delivery outside the EU, import taxes and duties will have to be paid by the buyer!

Product information "Nilai500DIY"
Nilai® Class D technology is here! We have taken our existing control-loop topology to a whole new level resulting in an immense performance upgrade compared to NCORE®. The overall performance has increased by not less than 10 times! This massive performance boost results in distortion figure that are 10 times lower, a power supply noise rejection that is 10 times higher and a reduced output impedance that has dropped by a factor 10. These figures may already sound incredible, wait until you hear them come alive through your speakers!

APPLICATIONS
High-end power amplifiers

FEATURES
500W / 4Ohm
THD+N: 0,00015% (-116dB) @ 100W / 4Ohm / 20.000Hz
Output noise: 9,5µV @11,8dB gain
Gain adjust in 3 steps (11,8 - 21,8 and 27,8)
High fidelity components
Discrete buffer stage and regulators
Dedicated high-end power supply PS500DIY (Sold separately!)
Also available in mono & stereo kits

CONTENTS OF PACKAGING
Nilai500DIY amplifier module
Nilai500DIY cable set
Nilai500DIY mounting set
Nilai500DIY manual

RECOMMENDED ADDITIONAL PARTS

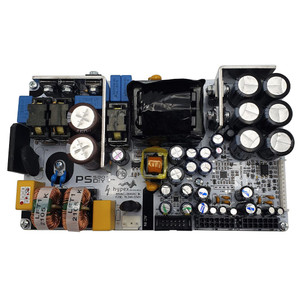

PS500DIY

SPECIFICATIONS
Power (2Ω): 500W
Power (4Ω): 525W
Power (8Ω): 260W
Channels: 1
Technology: Nilai®
Family: Nilai®
HxR Ready : On board
Recommended SMPS: PS500DIY

OPTIONS
Loudspeaker binding post 2 poles clear
You don't need this if you're building the FusionAmp amplifier into the speaker. You can connect it directly to the drivers using the supplied cables. But if you want to build it into a separate box, or if you need speaker connections for some reason, you can order them. One piece includes both poles. Goldplated binding post to connect your loudspeakers with your amplifier chassis. For banana plug, spade plug and bare wire connections. This binding post can be mounted as a set with the black spacer or as two single connectors.

Neutrik XLR male 3 pole cable chassis
3 pole male XLR cable chassis plug from Neutrik with black metal housing and gold plated contacts.

Neutrik XLR female 3 pole cable chassis
3 pole female XLR cable chassis socket from Neutrik with black metal housing and gold plated contacts/soldercups. Neutrik part: NC3FDLB1

Hypex Sticker
This sticker of Hypex can be used on your case or other product where Hypex products are used. Show others what modules you have used to build your own amplifier. Dimensions 50x20mm.

Downloadable documents
Nilai500 01xx R2.pdf

Options Downloadable documents
Loudspeaker binding post 2 poles clear
Loudspeaker_bindingspost_2_poles_clear.pdf
Loudspeaker bindingpost V2.pdf
